GripVolt Solar TPMS Tire Pressure Monitoring System | External Tire Pressure & Temperature Sensors with Digital Display, Real-Time Alerts for Cars, SUVs & RVs
Sale price
$36.99 USD
Regular price
$69.99 USD
Skip to product information
GripVolt Solar TPMS Tire Pressure Monitoring System | External Tire Pressure & Temperature Sensors with Digital Display, Real-Time Alerts for Cars, SUVs & RVs
Sale price
$36.99 USD
Regular price
$69.99 USD
Free shipping on all orders.
Return policy
For return eligibility and product issues, please see our Refund Policy. Change-of-mind returns are not offered except where required by applicable law. If your item arrives damaged, faulty or incorrect, contact office@gripvolt.com so we can assess the issue and arrange an appropriate resolution. Your statutory rights are unaffected.
Shipping
Free standard shipping on all orders, with no minimum purchase required, to destinations available at checkout.
Processing: 1–3 business days.
Estimated delivery after dispatch:
- United States: 7–14 business days.
- United Kingdom, Germany, France, Italy and Spain: 4–7 business days.
- Other supported destinations: 7–14 business days.
Delivery times are estimates and may vary. Tracking details will be emailed after dispatch. Customs or import charges may apply where applicable. See our Shipping Policy for full details.
GripVolt Solar TPMS – Monitor Tire Pressure & Temperature at a Glance
Drive with more confidence with the GripVolt Solar TPMS Tire Pressure Monitoring System. Four external sensors continuously monitor your tires and send pressure and temperature data to the digital display, helping you identify abnormal tire conditions before they become a bigger problem.
The system uses solar charging with USB backup charging, automatic wake-up when the vehicle moves, and automatic sleep when parked to save energy.
✅ Key Features
🚗 Real-Time Monitoring for All 4 Tires
Monitor the pressure and temperature of all four tires from one compact display.
The system updates tire information automatically, making it easier to notice abnormal pressure or temperature while driving.
⚠️ Multiple Tire Warning Alerts
The TPMS can alert you to six common abnormal conditions:
- Fast tire pressure loss
- Slow tire pressure loss
- High tire pressure
- High tire temperature
- Low sensor battery
- Sensor failure
Early warnings can help you check your tires before a pressure problem becomes more serious.
🎯 0.1 Bar Pressure Measurement
The external sensors support tire pressure measurement from 0–4 Bar, with pressure readings designed for quick monitoring of common passenger vehicles.
⚡ Fast Sensor Detection
The sensors detect tire data every 0.3 seconds, while the display updates tire information approximately every 6 seconds, helping provide timely information about changing tire conditions.
☀️ Solar Charging + USB Charging
The display uses solar charging for convenient everyday use. When sunlight is limited or during cloudy weather, simply recharge it through USB.
No vehicle wiring is required.
🔋 Automatic Wake & Sleep
The display automatically wakes when the vehicle is in use and enters sleep mode when the vehicle is stationary.
This helps reduce unnecessary power consumption without requiring manual operation every time you drive.
🔧 External Sensors – Easy Installation
The four external sensors install directly onto the tire valve stems.
No tire removal, wiring, or professional tire balancing is required.
Installation can be completed in a few simple steps.
💧 IP67 Water Resistance
The external sensors feature an IP67-rated design, helping protect them against dust and water exposure during everyday driving.
🛠️ How to Install the External TPMS Sensors
- Remove the existing valve cap.
- Screw the hexagonal anti-theft nut onto the valve stem.
- Install the sensor marked for the corresponding tire position.
- Use the included wrench to tighten the anti-theft nut against the sensor.
- Apply soapy water around the valve connection and check for air leakage before driving.
Always make sure each sensor is securely installed before using the vehicle.
Specifications
| Item | Details |
|---|---|
| Model | GripVolt TPMS |
| Power Supply | Solar Panel + USB Charging |
| Pressure Range | 0–4 Bar / 0-58 PSI |
| Sensor Detection Interval | 0.3 seconds |
| Sensor Waterproof Rating | IP67 |
| Operating Voltage | 2.1–3.6V |
| Temperature Range | -20°C to +85°C / -4°F to 185°F |
| Pressure Accuracy | ±0.1 Bar |
| Temperature Accuracy | ±3°C |

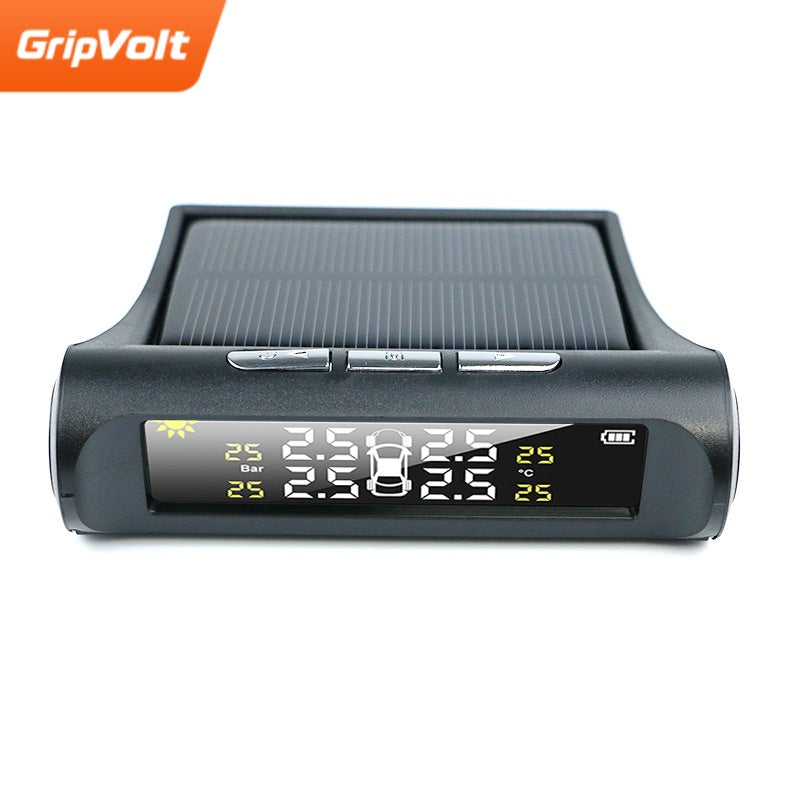

| Display | LCD Screen |
| Sensor Type | External Wireless (433.92 MHz) |
| Battery Type | CR1632 (Replaceable, 1–2 Year Life) |

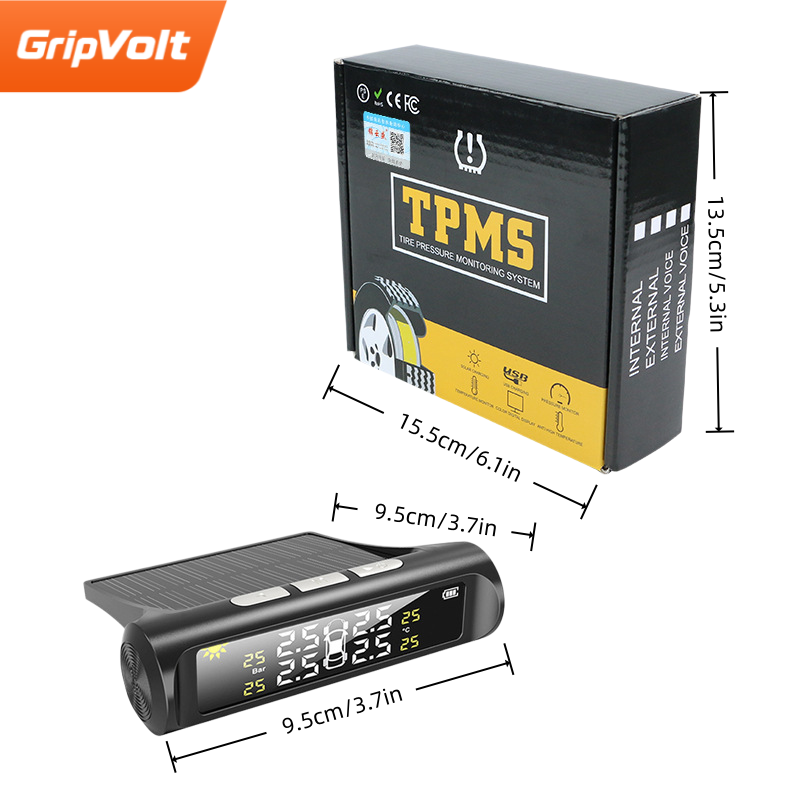

| Dimensions | Approx. 10 x 8 x 3 cm (main unit) |
📦 What's in the Box
- 1 × TPMS Display Unit
- 4 × External Tire Pressure Sensors
- 1 × USB Charging Cable
- 4 × Anti-Theft Nuts
- 1 × Sensor Wrench
- 1 × User Manual
🚘 A Smarter Way to Monitor Your Tires
Instead of waiting for a warning light or checking tire pressure manually, the GripVolt Solar TPMS keeps key tire information visible while you drive.
Monitor four tires, tire pressure, and tire temperature from one display and get alerts when abnormal conditions are detected.
FAQ
TPMS stands for Tire Pressure Monitoring System. It monitors tire pressure and temperature and alerts you when abnormal conditions are detected, such as low pressure, high pressure, rapid air loss, or excessive tire temperature.
The system uses four external sensors installed on the tire valve stems. The sensors measure tire pressure and temperature and wirelessly transmit the information to the display inside the vehicle.
The display shows information for all four tires, helping you monitor tire conditions while driving.
Yes. The system includes four external sensors, allowing you to monitor the pressure and temperature of all four tires from one display.
Yes. The external sensors are designed for simple installation without removing the tires or connecting wires.
Simply remove the valve caps, install the corresponding sensors, tighten them with the included wrench, and check the valve connections for air leakage using soapy water.
No. These are external TPMS sensors, so they install directly onto the existing tire valve stems. Tire removal, wiring, and professional installation are not required.
The system provides alerts for six common abnormal conditions:
Fast tire pressure loss
Slow tire pressure loss
High tire pressure
High tire temperature
Low sensor battery
Sensor failure
The sensors detect tire data approximately every 0.3 seconds, while the display updates the tire information approximately every 6 seconds.
This allows the system to provide timely information when tire conditions change.
The sensors support a pressure range of 0–4 Bar.
The system provides pressure readings with a resolution of approximately 0.1 Bar, making it suitable for monitoring tire pressure on many passenger vehicles, SUVs, MPVs, vans, and similar vehicles within the supported pressure range.
Yes. The external sensors monitor both tire pressure and tire temperature, allowing you to see both measurements on the display.
The system can also provide a high-temperature warning when the preset temperature threshold is exceeded.
The display supports solar charging and USB charging.
The solar panel can provide convenient charging during normal daytime driving, while USB charging can be used when sunlight is insufficient.
No. The display is designed with automatic wake and sleep functions.
It can automatically wake when the vehicle is in use and enter sleep mode when the vehicle is stationary, helping reduce unnecessary power consumption.
Yes. The external sensors have an IP67 water-resistance rating, providing protection against dust and water exposure during normal vehicle use.
The system is designed for many common passenger vehicles, including:
Cars
SUVs
MPVs
Vans
RVs
Other compatible vehicles within the supported 0–4 Bar pressure range
Always check your vehicle's recommended tire pressure before installation.
A TPMS provides convenient real-time monitoring, but it should not replace regular tire maintenance.
You should still periodically check tire pressure with a reliable pressure gauge and inspect your tires for visible damage, wear, or leaks.
The package includes:
1 × TPMS Display Unit
4 × External TPMS Sensors
1 × USB Charging Cable
4 × Anti-Theft Nuts
1 × Sensor Wrench
1 × User Manual
