A TPMS warning usually indicates an abnormal tire pressure or temperature condition that requires the driver's attention. Depending on the system, alerts may include rapid tire pressure loss, slow pressure loss, high tire pressure, high tire temperature, low sensor battery, or sensor failure.
The GripVolt Solar TPMS Tire Pressure Monitoring System is designed to monitor the pressure and temperature of all four tires and provide alerts when abnormal conditions are detected.
Understanding what different TPMS warnings mean can help drivers recognize potential tire problems earlier and decide when a tire needs to be checked.
What Can Trigger a TPMS Warning?
A tire pressure monitoring system can detect several conditions that may not be immediately obvious while driving.
The GripVolt Solar TPMS provides six types of alerts:
-
Fast tire pressure loss
-
Slow tire pressure loss
-
High tire pressure
-
High tire temperature
-
Low sensor battery
-
Sensor failure
These warnings do not all mean the same thing. Some indicate a change in tire condition, while others relate to the monitoring sensors themselves.
1. What Does a Rapid Tire Pressure Loss Warning Mean?
A rapid tire pressure loss warning indicates that tire pressure is decreasing quickly.
Possible causes can include a puncture, damaged valve, or other air-loss problem.
A rapid pressure change should not be ignored. If the vehicle feels unstable or the tire appears visibly damaged, the safest approach is to slow down and stop in a suitable location for inspection.
The GripVolt Solar TPMS continuously monitors pressure through four external sensors, helping drivers identify significant pressure changes while driving.
However, TPMS is a monitoring tool and does not replace a physical tire inspection.
2. What Does a Slow Tire Pressure Loss Warning Mean?
Not every tire-pressure problem happens suddenly.
A tire can gradually lose air over time because of a small leak, valve issue, temperature changes, or other factors.
Slow pressure loss can be particularly difficult to notice because the vehicle may continue to feel normal.
This is one reason continuous tire-pressure monitoring can be useful.
The GripVolt Solar TPMS monitors all four tires and can alert drivers when a slow pressure-loss condition is detected, giving them an opportunity to check the affected tire before the pressure becomes a more serious problem.
3. What Does a High Tire Pressure Warning Mean?
Tire pressure that is too high is also an abnormal condition.
Drivers should not assume that higher pressure is always better. Tire pressure should generally follow the vehicle manufacturer's recommended specifications.
Pressure can also change as tires heat up during driving.
The GripVolt Solar TPMS provides pressure information for each monitored tire, allowing drivers to see pressure changes rather than relying only on a manual check performed before the journey.
Its external sensors support a 0–4 Bar pressure measurement range with 0.1 Bar pressure measurement.
4. What Does a High Tire Temperature Warning Mean?
Tire temperature can increase during driving, particularly during extended journeys and other conditions that generate additional heat.
A high tire temperature warning does not automatically mean that a tire has failed, but it is a condition that deserves attention.
This is why monitoring both pressure and temperature can provide more information than monitoring pressure alone.
The GripVolt Solar TPMS monitors tire temperature alongside tire pressure for all four tires, helping drivers see changes in both conditions from one display.
The sensors are designed to operate across a temperature range of -20°C to 85°C.
5. What Does a Low Sensor Battery Warning Mean?
Not every TPMS warning is related to the tire itself.
External TPMS sensors use batteries to collect and transmit tire information. When a sensor battery becomes low, the system can provide a low-battery warning.
This helps drivers distinguish between a potential tire-pressure issue and a sensor-maintenance issue.
The GripVolt system uses four external sensors mounted directly to the tire valve stems.
6. What Does a TPMS Sensor Failure Warning Mean?
A sensor failure warning indicates that the monitoring system may not be receiving normal information from one of the sensors.
This can happen for different reasons, including sensor damage, battery issues, or communication problems.
When a sensor failure occurs, drivers should check the affected sensor and make sure it is correctly installed.
The GripVolt Solar TPMS uses four external sensors and provides sensor-failure alerts to help drivers identify when the monitoring system itself needs attention.
Can TPMS Detect a Slow Tire Leak?
A TPMS can help detect changes associated with a slow tire leak, but it is not a replacement for professional leak testing.
A slow leak may not be noticeable during a short drive. Continuous pressure monitoring can make gradual pressure changes easier to identify.
The GripVolt Solar TPMS measures tire pressure across a 0–4 Bar range and provides approximately 0.1 Bar pressure measurement.
If one tire consistently loses pressure compared with the others, the driver has a reason to inspect the tire, valve, and surrounding components.
If a leak is suspected, the tire should be inspected and repaired appropriately rather than relying on the TPMS warning alone.
Why Does Tire Pressure Change While Driving?
Tire pressure is not necessarily constant throughout a journey.
Several factors can influence tire pressure, including:
-
Ambient temperature
-
Tire temperature
-
Driving duration
-
Natural air loss
-
Tire leakage
-
Vehicle load
-
Road conditions
One important factor is temperature.
As a tire heats up during driving, the air inside the tire also becomes warmer, which can affect the pressure reading.
This means that a pressure reading taken before driving may differ from one observed after the vehicle has been on the road for some time.
The GripVolt Solar TPMS allows drivers to monitor these changes while driving instead of relying only on occasional manual measurements.
Why Monitor Tire Pressure and Temperature Together?
Tire pressure and tire temperature provide different information.
Pressure shows how much air is inside the tire, while temperature shows how the tire's thermal condition is changing.
Monitoring both can provide a more complete picture of tire conditions.
For example, a driver traveling for an extended period may see changes in both pressure and temperature as the tires warm up.

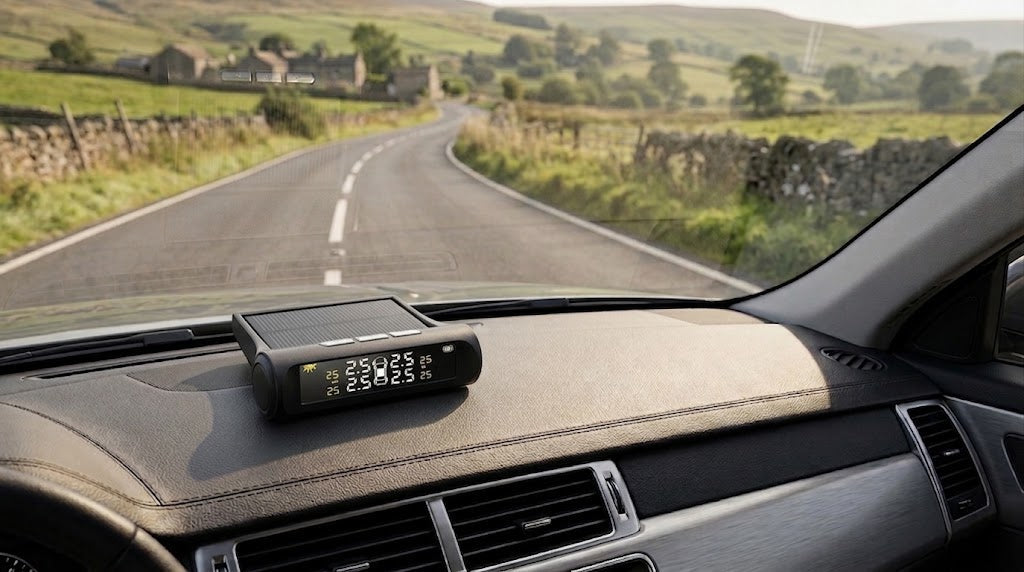

The GripVolt system displays tire pressure and temperature information for all four tires, allowing drivers to compare the readings across the vehicle.
How Does the GripVolt Solar TPMS Monitor Four Tires?
The GripVolt Solar TPMS Tire Pressure Monitoring System uses four external sensors installed on the tire valve stems.
Each sensor is assigned to a specific tire position and transmits pressure and temperature information to the display.
The sensors detect tire information approximately every 0.3 seconds, while the display updates tire information approximately every 6 seconds.
This provides drivers with regularly updated tire information without requiring them to manually check each tire.
The system supports:
-
Four external tire sensors
-
Pressure monitoring
-
Temperature monitoring
-
Six abnormal-condition alerts
-
Digital display
-
0–4 Bar pressure range
-
0.1 Bar pressure measurement
-
Approximately 0.3-second sensor detection
-
Approximately 6-second display updates
What Should You Do When a TPMS Warning Appears?
A TPMS warning is an indication to check the vehicle, not something to simply dismiss.
When an abnormal tire condition appears, drivers can follow a basic process.
Step 1: Reduce Speed When Appropriate
If the vehicle feels unusual or the pressure is changing rapidly, reduce speed and avoid sudden steering or braking.
Step 2: Find a Safe Place to Stop
If the warning indicates a significant pressure problem, stop somewhere safe and inspect the affected tire.
Step 3: Check the Tire
Look for visible punctures, damage, objects embedded in the tire, or other obvious problems.
Step 4: Check the Pressure
Compare the TPMS reading with the vehicle manufacturer's recommended tire pressure.
A manual pressure gauge can also be used when appropriate.
Step 5: Inspect Persistent Pressure Loss
If one tire repeatedly loses pressure, have the tire and valve system inspected for a possible leak.
Step 6: Check the TPMS Sensor
If the warning relates to sensor battery or sensor failure, check the corresponding sensor and its installation.
If the tire is damaged or the cause of the warning is unclear, professional inspection is recommended.
Does an External TPMS Require Tire Removal?
No.
One practical feature of the GripVolt Solar TPMS is its external sensor design.
The sensors install directly onto the tire valve stems without requiring tire removal or permanent vehicle wiring.
Installation involves:
-
Removing the original valve cap
-
Installing the anti-theft nut
-
Screwing the corresponding sensor onto the valve stem
-
Tightening the anti-theft nut with the included wrench
-
Applying soapy water around the connection to check for air leakage
The sensors are also rated IP67, providing protection against dust and water exposure.
Always verify that each sensor is securely installed before driving.
Does the GripVolt TPMS Need Vehicle Wiring?
No.
The GripVolt Solar TPMS uses a solar-powered display with USB backup charging.
The display can recharge through sunlight during normal use, while USB charging provides an alternative when sunlight is limited.
The system does not require permanent wiring into the vehicle.
It also features automatic wake and sleep functions.
The display wakes when the vehicle is in use and enters sleep mode when the vehicle is stationary, helping reduce unnecessary power consumption.
Which Vehicles Can Use the GripVolt Solar TPMS?
The GripVolt Solar TPMS is designed for compatible passenger vehicles, including:
-
Cars
-
SUVs
-
MPVs
-
Vans
-
RVs
Vehicle compatibility should always be confirmed before installation, particularly regarding tire-pressure requirements and valve-stem compatibility.
Is TPMS a Replacement for Manual Tire Checks?
No.
A TPMS provides additional information, but drivers should continue following normal tire-maintenance practices.
Regular checks should include:
-
Tire pressure
-
Tire tread condition
-
Visible tire damage
-
Valve condition
-
Signs of air leakage
Drivers should follow the vehicle manufacturer's recommended tire pressure rather than using a generic pressure target.
The purpose of the GripVolt Solar TPMS is to make pressure and temperature information easier to monitor between regular inspections.
Key Specifications of the GripVolt Solar TPMS
The GripVolt Solar TPMS Tire Pressure Monitoring System is equipped with four external sensors and a digital display.
Its key specifications include a 0–4 Bar pressure range, 0.1 Bar pressure measurement, approximately 0.3-second sensor detection, and approximately 6-second display updates.
The external sensors use a 433.92 MHz transmission frequency, operate from -20°C to 85°C, and feature an IP67 water-resistance rating.
The display supports solar charging and USB charging, while the system's automatic wake and sleep functions are designed for convenient everyday use.
A More Practical Way to Stay Aware of Tire Conditions
A tire pressure warning is more useful when drivers understand what it is trying to tell them.
Rapid pressure loss, slow pressure loss, high pressure, high tire temperature, low sensor battery, and sensor failure can represent very different situations.
The GripVolt Solar TPMS Tire Pressure Monitoring System is designed to make these conditions easier to identify by monitoring all four tires and displaying pressure and temperature information in one place.
With four external sensors, six abnormal-condition alerts, solar and USB charging, automatic wake and sleep, and IP67-rated sensors, the system provides an additional layer of tire-condition visibility for everyday driving, highway trips, long-distance travel, and compatible RV or van use.
TPMS does not replace regular tire inspection or professional service. Instead, it gives drivers more information to help them recognize changes and decide when further inspection may be needed.
About GripVolt
GripVolt is a global automotive accessories brand focused on developing practical products around real driving scenarios. Its product portfolio includes tire pressure monitoring systems, portable car refrigerators, jump starters, tire inflators, temperature-control products, inspection lights, phone mounts, and other automotive accessories designed to support everyday driving and travel.
